What Should Power Relay Do When There Is Insufficient Voltage?

Nov. 01, 2018

Once the voltage applied to the coil is insufficient, the Power Relay will not work, or the operation will be unstable, which will cause the durability of the contact to decrease or the contact point such as welding to be blocked. In particular, in a large motor or the like, when the power is turned on, the voltage applied to the relay coil sometimes drops at the moment of a load operation in which a large inrush current is generated. If the relay is operated in a low voltage state, even if it is a vibration or shock value within the specifications specified in the specifications and catalogues, the relay may malfunction. Therefore, apply a rated voltage to the coil of the relay. For fluctuations in the power supply voltage, apply a voltage to the coil that each relay can fully operate. If a voltage is applied to the coil that does not allow the relay to fully operate, the coil will be abnormally heated, causing the coil to burn out. In addition, if a motor, a solenoid, a transformer, etc. are connected to the same power supply line as the operating circuit of the relay, when those devices operate, the power supply voltage is lowered, the contact of the relay is vibrated, causing the contact to burn out, welding, or Can not protect themselves. In particular, when a small transformer is used and when the transformer does not have a sufficient capacity, such a use method may occur if the wiring is long or the wiring for household use or shops is thin. In the case of a similar failure, use a synchronous oscilloscope to properly adjust the voltage change, and take appropriate countermeasures and convert to a DC circuit.

We have relays such as T90 Relay, CE Relay, etc. If you have any questions, please contact us.

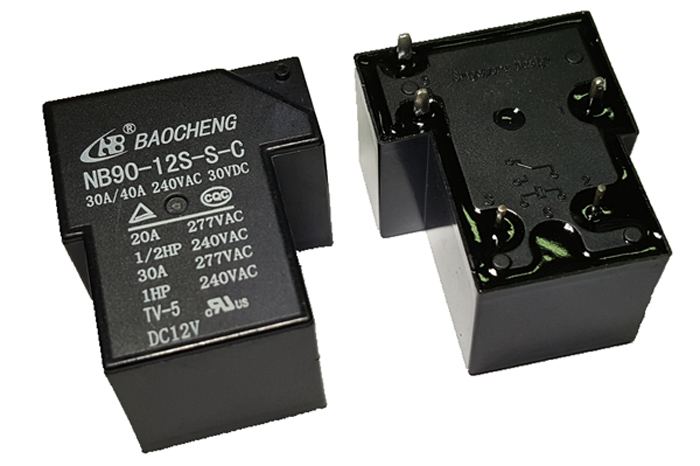

T90 Relay
