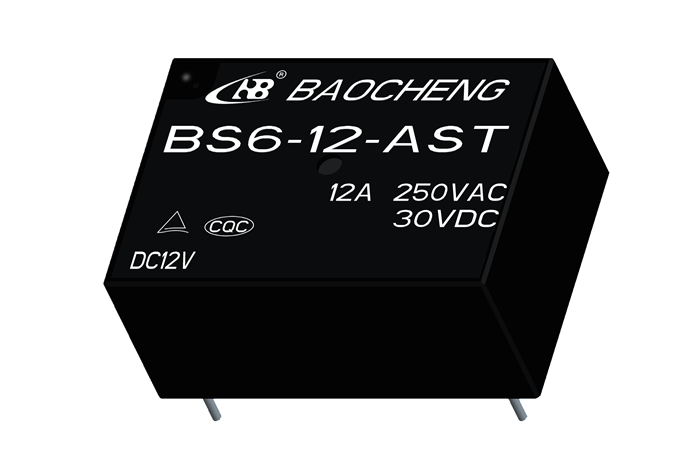

· 12A High load capability
· THT terminal types for PCB layout
· High sensitivity: 200mW
· One group of NO contact form
· Low height, flat construction
· Option for sealed and flux-tight type
· UL insulation grade：Class F
· Environmental friendly product
· Outline dimension: 23 x 16.2 x 10.6mm
| Contact Ratings | |
| Contact Form: | 1A |
| Contact Material: | AgCdO, AgSnO2 |
| Contact Load Capacity: | 12A/250VAC,30VDC |
| Max. Switching Current: | 12A |
| Max. Switching Power: | 3000VA/360W |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 1*105OPS |
| Technical Ratings | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength(Between coil&contact): | 2500VAC |
| Operate Time (Max.): | 15ms |
| Terminal Type: | THT |
| Coil Ratings | |
| Nominal Voltage | (5-48)VDC |
| Nominal Coil Power | 0.2W, 0.36W |
PCB Layout (Bottom View) Wiring Diagram (Bottom View)
