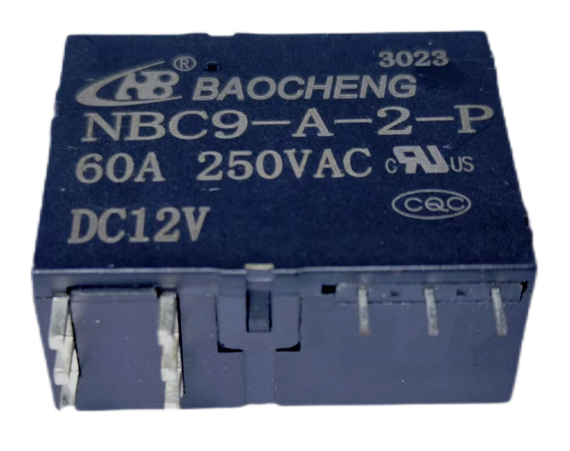

RELAY TYPE: NBC9-60A

· Latching relay

· High sensitivity&reliability

· Strong impact&vibration resistance

· 60A high load capability

· Environmental friendly product

· Outline dimension: 38 x 30 x 16.5mm


Contact Ratings
Contact Form:1A
Contact Material:AgSnO2
Contact Load Capacity:60A/250VDC
Max. Switching Current:60A
Max. Switching Power:15000VA
Mechanical Endurance:1*106OPS
Electrical Endurance:1*105OPS


Technical Ratings
Insulation Resistance:100MΩ
Dielectric Strength(Between coil&contact):4000VAC
Operate Time (Max.):20ms
Release Time (Max.):20ms
Ambient Temperature:-40℃ ~ 70℃
Terminal Type:PCB & QC


Coil Ratings
Nominal Voltage(6-48)VDC
Nominal Coil Power1.5W, 3W
