NB902E Relay

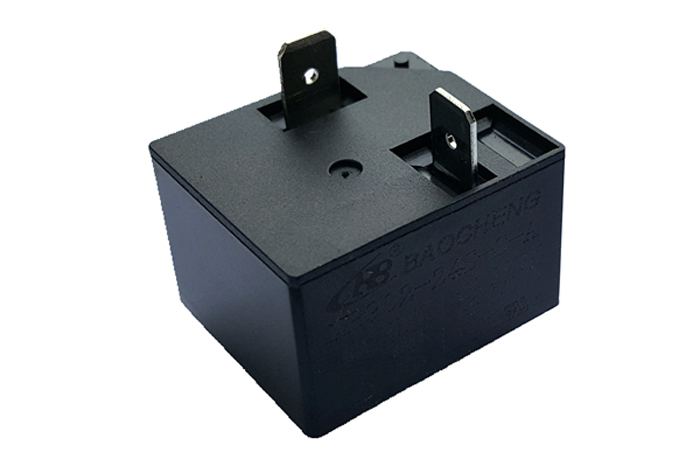

  • NB902E Relay

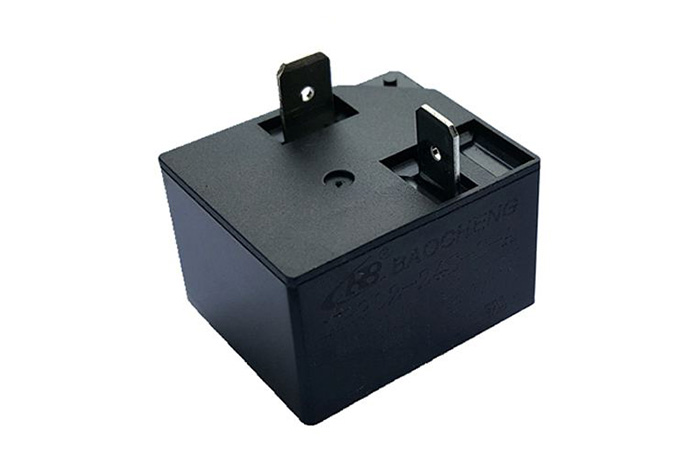

  • NB902E Relay

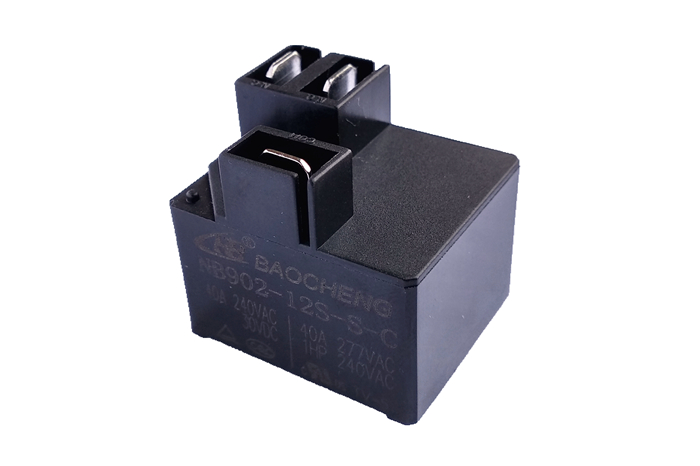

  • NB902E Relay

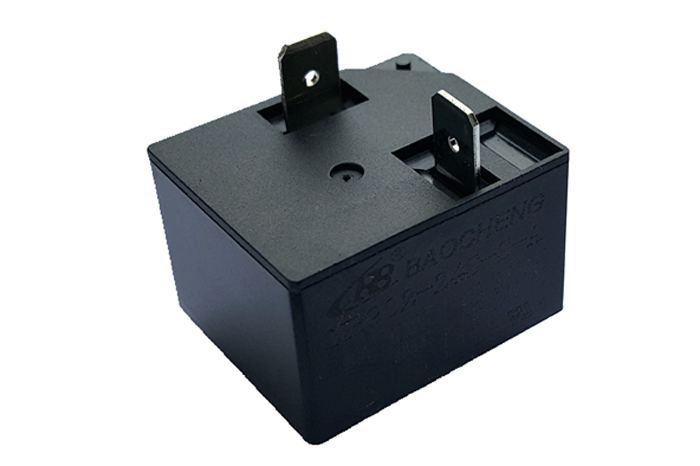

  • NB902E Relay

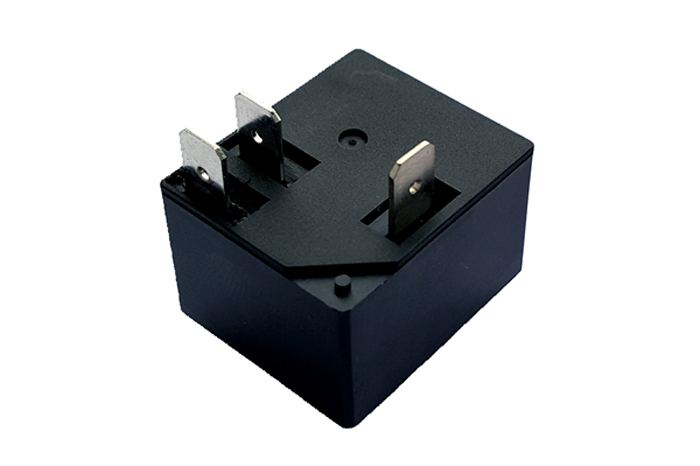

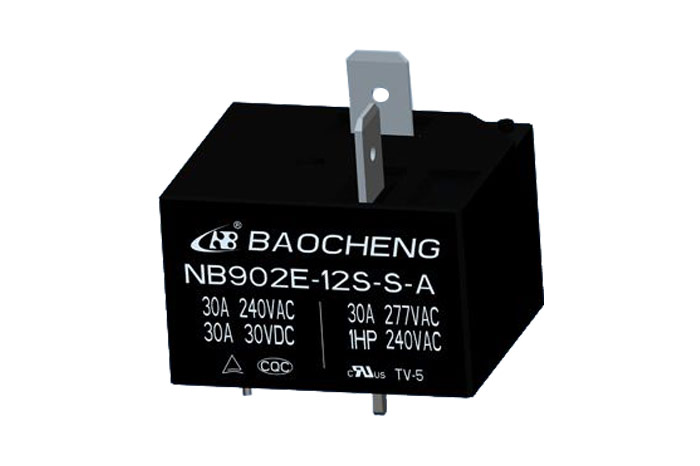

RELAY TYPE: NB902E Relay

· 30A switching capability

· THT&QT terminal types for heavy duty

· Dielectric strength between coil and contact 2.5KV,

  max.4KV

· NO,NC,NO&NC contact form available

· Option for sealed and flux-tight type

· UL insulation grade:Class F

· Environmental friendly product

· Outline dimension: 32 x 27.2 x 28mm & 32 x 27.2 x

  20.5mm

Contact Ratings
Contact Form:1A, 1B, 1C
Contact Material:AgCdO, AgSnO2
Contact Load Capacity:1A:30A/240VAC,30VDC
1B:20A/240VAC,30VDC
1C:30A/240VAC,30VDC
Max. Switching Current:30A
Max. Switching Power:7200VA/900W
Mechanical Endurance:1*107OPS
Electrical Endurance:1*105OPS


Technical Ratings
Insulation Resistance:1000MΩ
Dielectric Strength(Between coil&contact):2500VAC
Operate Time (Max.):15ms
Release Time (Max.):10ms
Ambient Temperature:-40℃ ~ 85℃/105℃
Terminal Type:THT & QT



Coil Ratings
Nominal Voltage(5-110)VDC
Nominal Coil Power0.9W

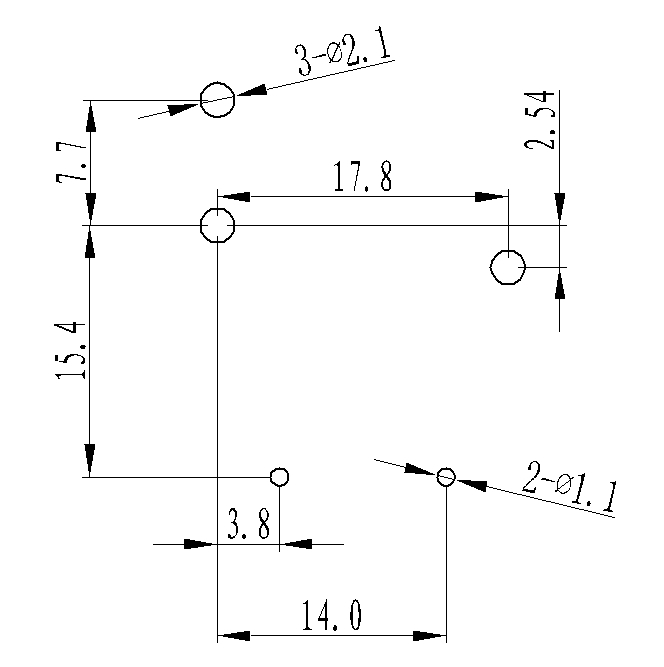

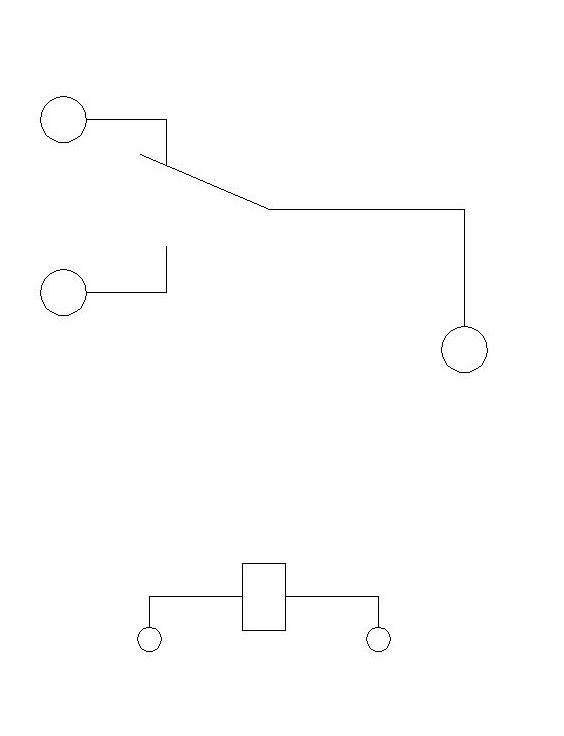

PCB Layout (Bottom View)                                            Wiring Diagram (Bottom View)

NB902E pcb layout                                                          NB902E wiring diagram
