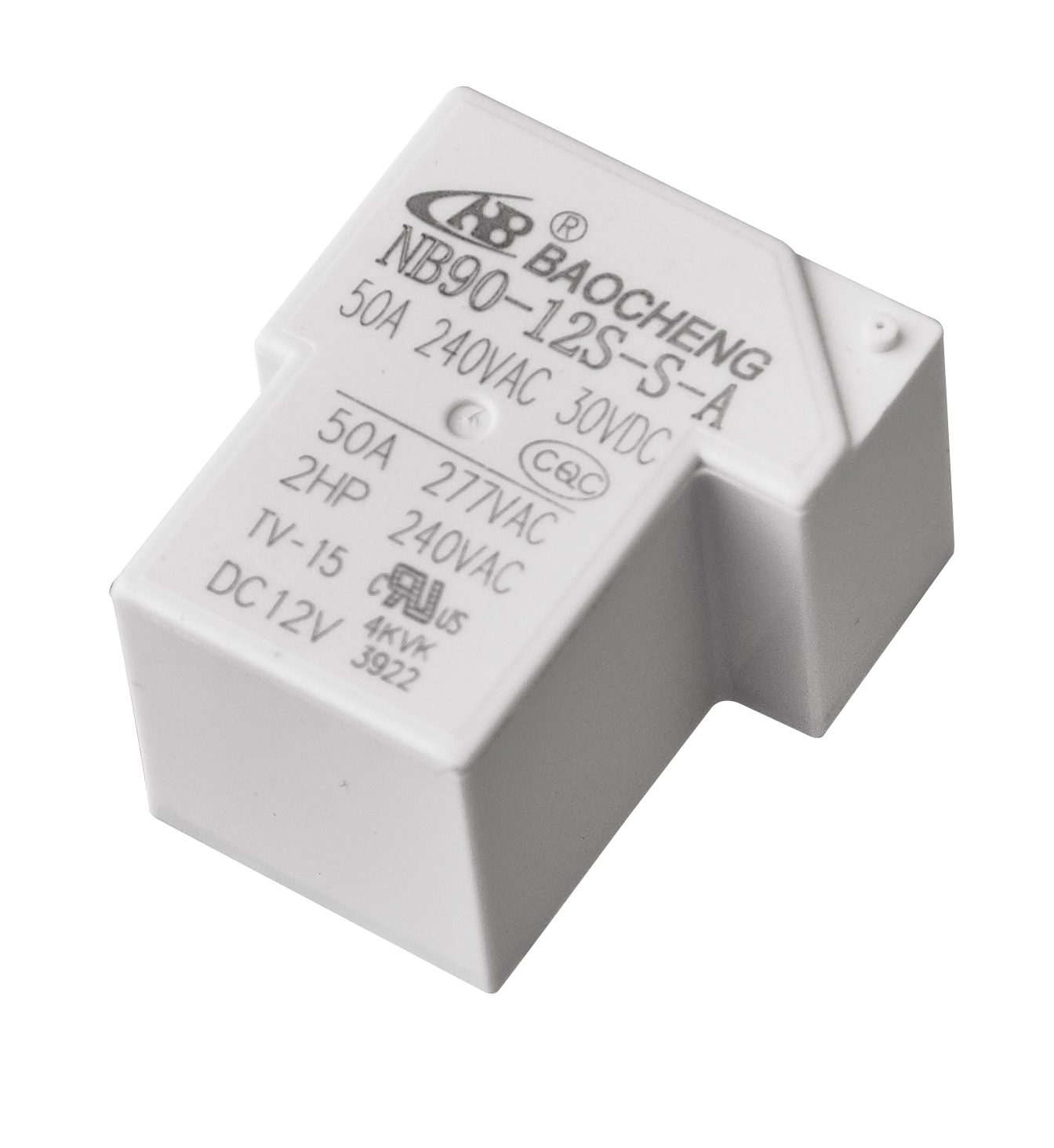

· 50A contacts switching capability
· 4000VAC is available for dielectric strength between contact and coil
· Coil insulation grade: Class F
· Contact form: NO,NC & SPDT
· Dust-free & Sealed type
· Certificates: UL, TUV, CQC
· Complies with RoHS
· Outline dimension: 32 x 27.2 x 20mm
More details contact Lois: jackyrelay@nbc-relays.com;
+86 15724295508
| Contact Ratings | |
| Contact Form: | 1A, 1C |
| Contact Material: | AgCdO, AgSnO2 |
| Contact Load Capacity: | 1A: NO: 50A 277VAC, TV-15 |
| 1C: NO: 50A 277VAC, TV-15; NC: 40A 277VAC | |
| Max. Switching Current: | 50A |
| Max. Switching Power: | 13850VA |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 1*105OPS |
| Technical Ratings | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength(Between coil&contact): | 4000VAC |
| Operate Time (Max.): | 15ms |
| Release Time (Max.): | 10ms |
| Ambient Temperature: | -55℃ ~ 85℃/105℃ |
| Terminal Type: | THT |
| Coil Ratings | |
| Nominal Voltage | 12VDC |
| Nominal Coil Power | 0.9W |

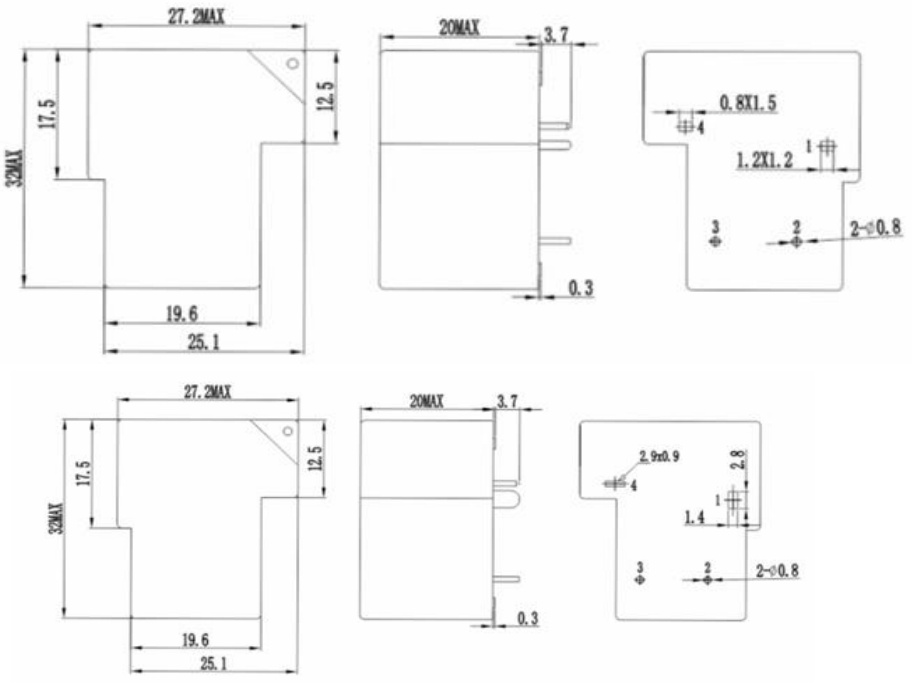

PCB Layout (Bottom View)
Wiring Diagram (Bottom View)
