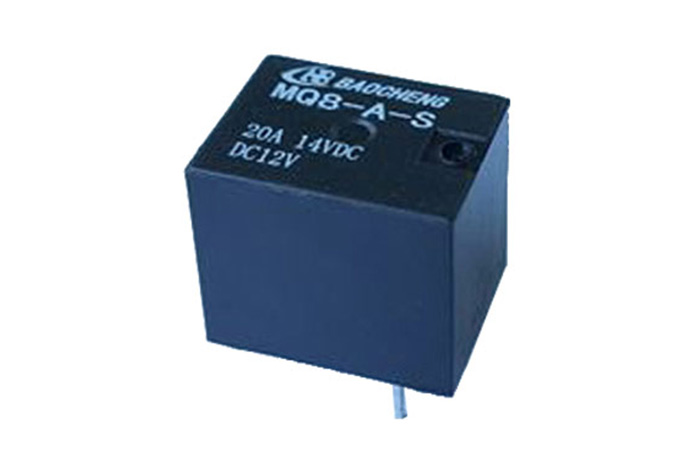

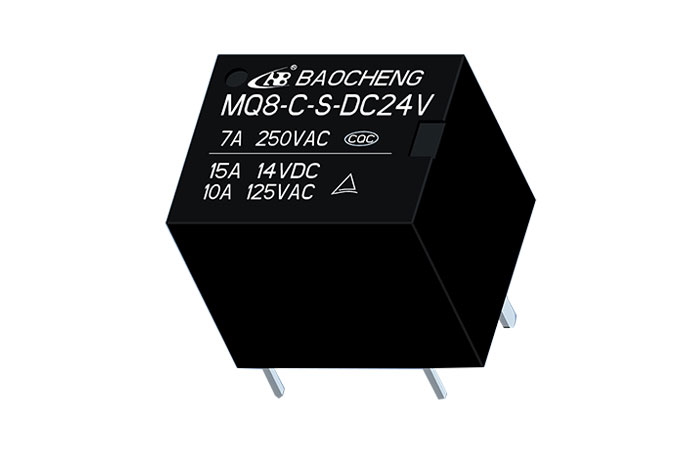

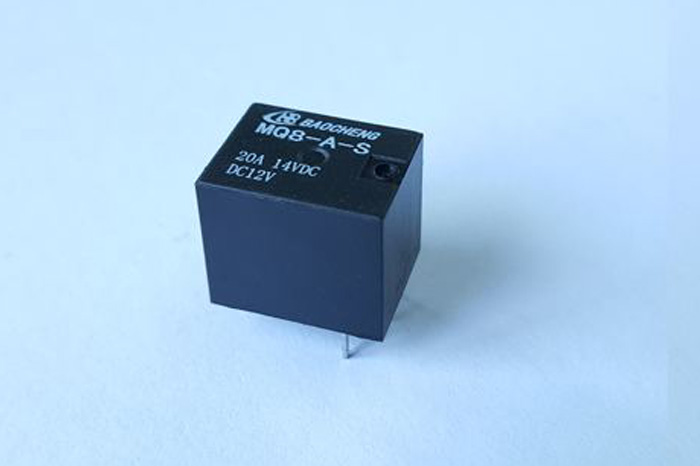

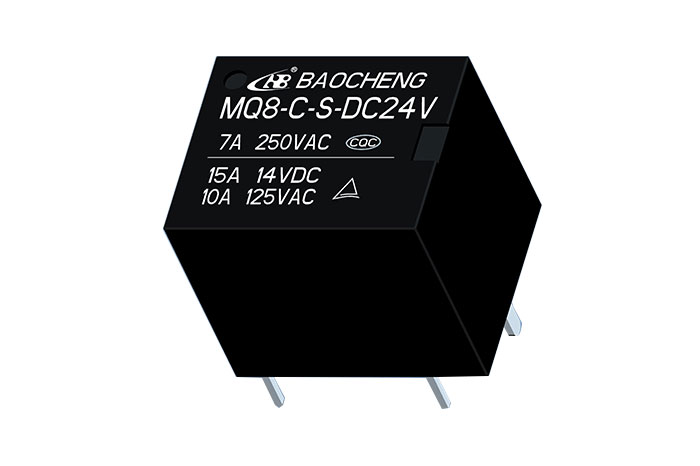

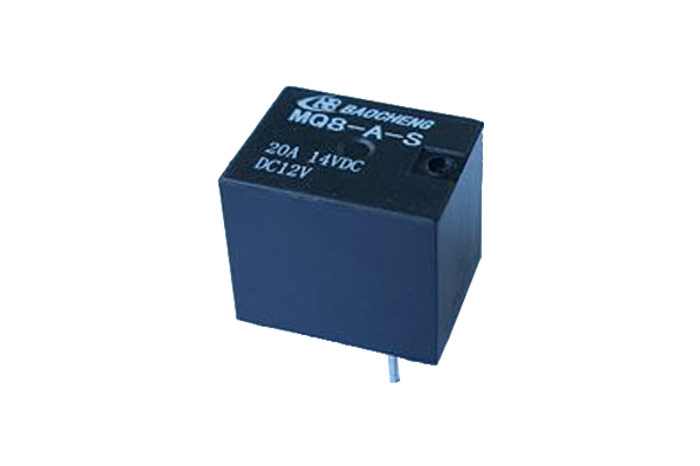

MQ8 Relay
  • MQ8 Relay
  • MQ8 Relay

RELAY TYPE: MQ8 Relay

· Tight structure and light weight

· High current contact capacity (carrying current:

  35A/10min. 25A/1H)

· Improved heat resistance

· Option for sealed and flux-tight type

· Conform to TUV approval standard

· Environmental friendly product

· Outline dimension: 15.5 x 12.5 x 13.5mm


Contact Ratings
Contact Form:1A, 1B, 1C
Contact Material:AgSnO2
Contact Load Capacity:20A/14VDC;15A/14VDC; 10A/125VAC
Max. Switching Current:35A
Max. Switching Power:
Mechanical Endurance:1*107OPS
Electrical Endurance:1*105OPS


Technical Ratings
Insulation Resistance:100MΩ
Dielectric Strength(Between coil&contact):500VAC
Operate Time (Max.):10ms
Release Time (Max.):5ms
Ambient Temperature:-40℃ ~85℃
Terminal Type:THT


Coil Ratings
Nominal Voltage(6-24)VDC
Nominal Coil Power0.6W,0.8W

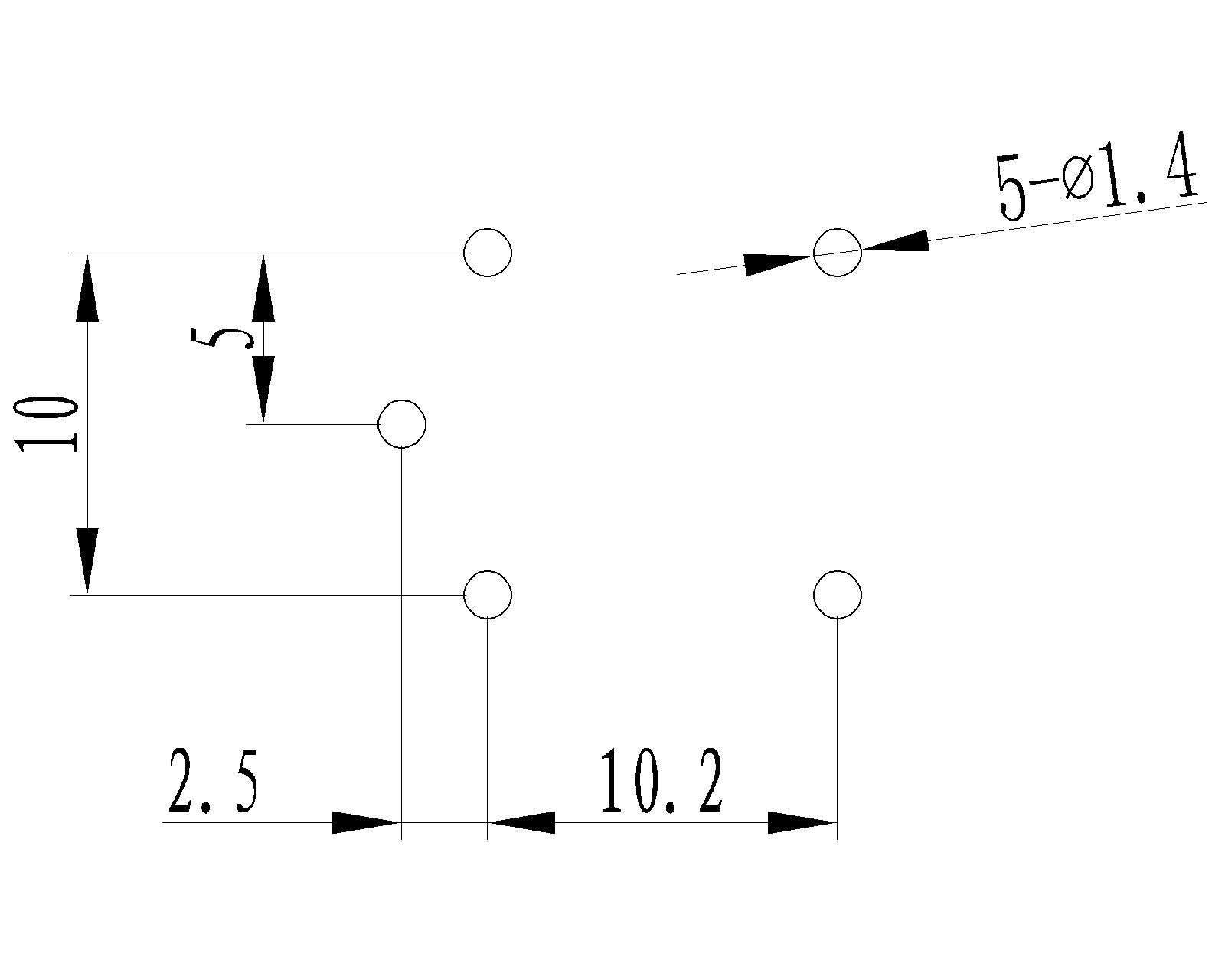

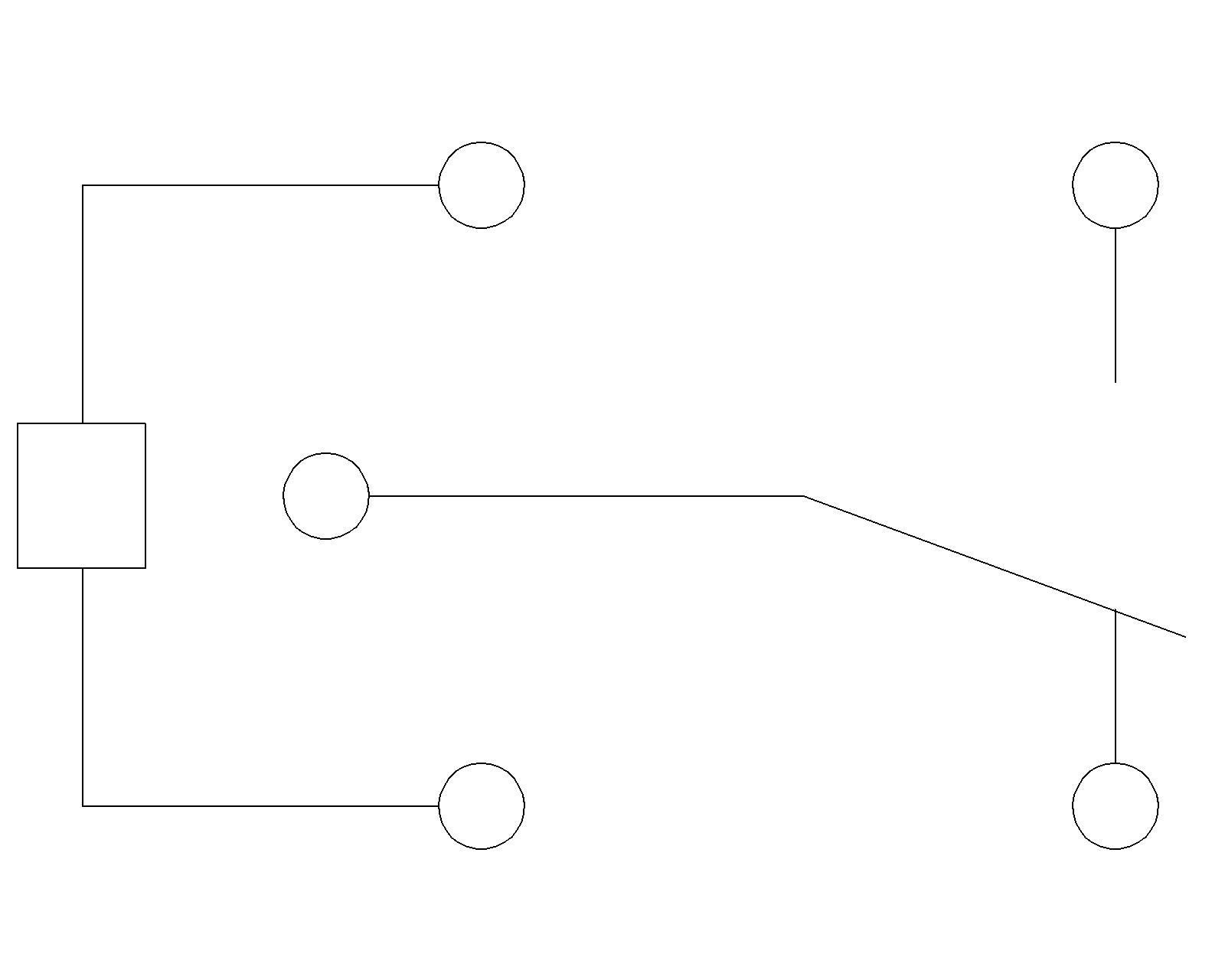

   PCB Layout (Bottom View)                                    Wiring Diagram (Bottom View)

MQ8 pcb layout                                              MQ8 wiring diagram
