· Subminiature automotive relay
· Only 4g for single relay
· Extended temp. range up to 105℃
· NO,NO&NC contact form available
· Environmental friendly product
· Outline dimension: 12 x 12.8 x 9.8mm
· Subminiature automotive relay
· Only 4g for single relay
· Extended temp. range up to 105℃
· NO,NO&NC contact form available
· Environmental friendly product
· Outline dimension: 12 x 12.8 x 9.8mm
| Contact Ratings | |
| Contact Form: | 1A, 1C |
| Contact Material: | AgSnO2 |
| Contact Load Capacity: | 1A: 30A/14VDC 1C: 30A/14VDC; 25A/14VDC |
| Max. Switching Current: | 30A |
| Max. Switching Power: | |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 1*105OPS |
| Technical Ratings | |
| Insulation Resistance: | 100MΩ |
| Dielectric Strength(Between coil&contact): | 500VAC |
| Operate Time (Max.): | 10ms |
| Release Time (Max.): | 10ms |
| Ambient Temperature: | -40℃ ~ 105℃ |
| Terminal Type: | THT |
| Coil Ratings | |
| Nominal Voltage | (5-24)VDC |
| Nominal Coil Power | 0.57W,0.8W |

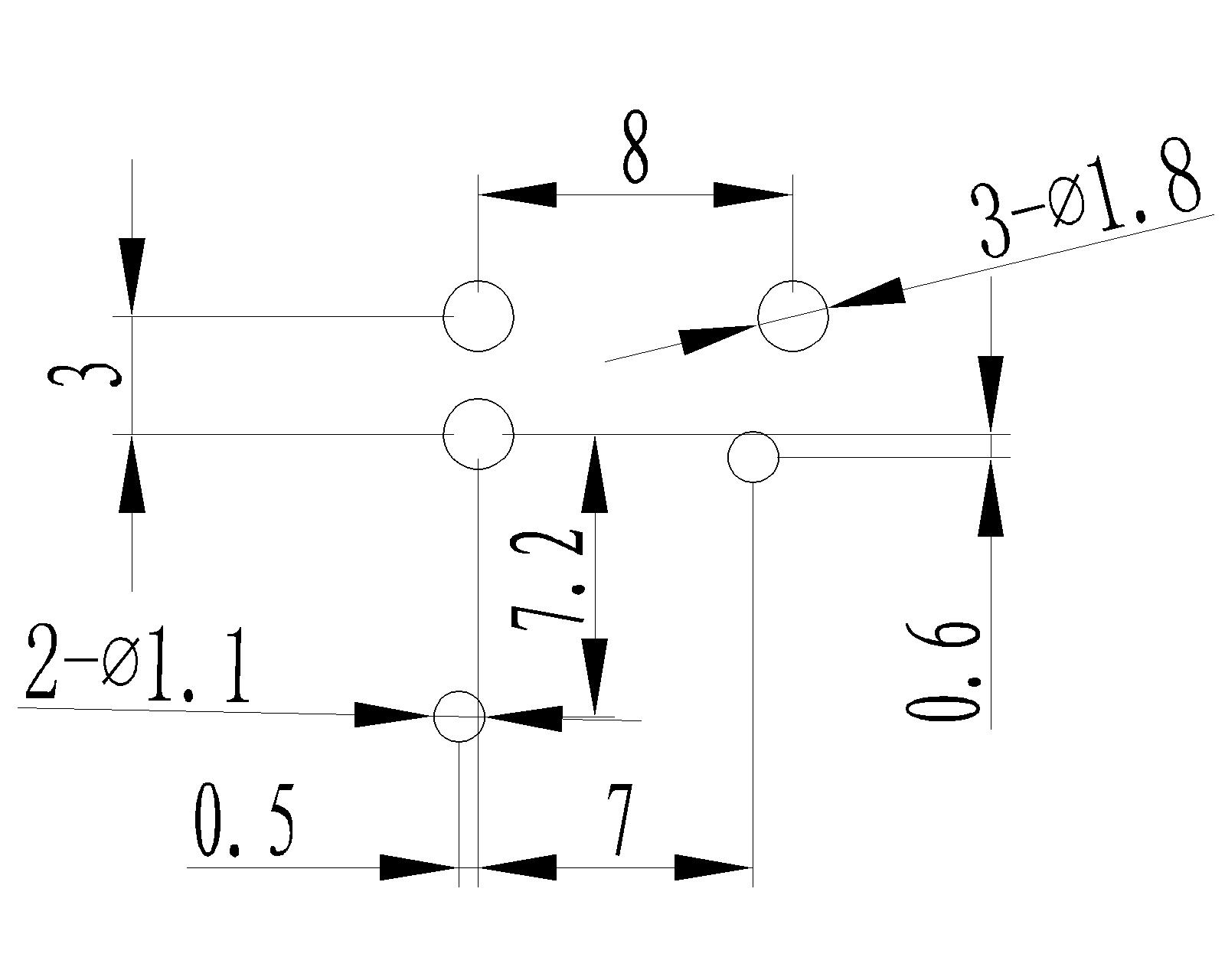

PCB Layout (Bottom View) Wiring Diagram (Bottom View)
Do you know the Application ...
What are the Precautions for...
