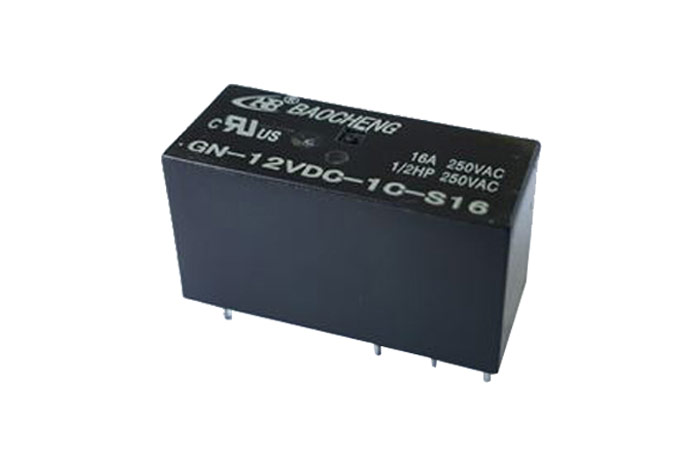

RELAY TYPE: GN Relay

· 16A switching capability

· Low height: 15.7 mm

· Standard PCB layout

· Dielectric strength between coil and contact 5KV

· Various of contact forms available

· Option for sealed and flux-tight type

· UL insulation grade:Class F

· Environmental friendly product

· Outline dimension: 29 x 12.7 x 15.7mm


Contact Ratings
Contact Form:1A, 1B, 1C; 2A, 2B, 2C
Contact Material:AgCdO, AgSnO2
Contact Load Capacity:1A,1B,1C:16A/250VAC;12A/250VAC
2A,2B,2C:8A/250VAC
Max. Switching Current:16A
Max. Switching Power:4000VA
Mechanical Endurance:1*107OPS
Electrical Endurance:1*105OPS


Technical Ratings
Insulation Resistance:1000MΩ
Dielectric Strength(Between coil&contact):5000VAC
Operate Time (Max.):15ms
Release Time (Max.):8ms
Ambient Temperature:-40℃ ~ 85℃
Terminal Type:THT




Coil Ratings
Nominal Voltage(5-48)VDC
Nominal Coil Power0.4W



          PCB Layout (Bottom View)                                       Wiring Diagram (Bottom View)

GN 16A pcb layout               GN 16A wiring diagram

        GN 2x8A pcb layout                                   GN 2x8A wiring diagram
