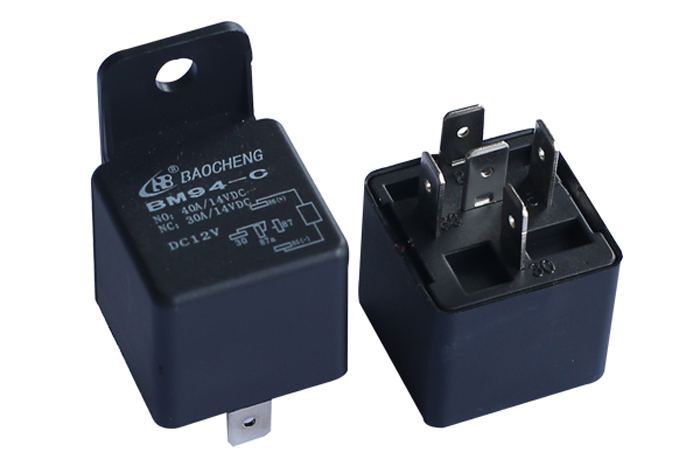

RELAY TYPE: BM94 40A Relay

· 40A switching capability

· Various mounting terminations available

· Dust-proof type

· NO,NC,NO&NC contact form available

· Environmental friendly product

· Outline dimension: 28 x 28 x 25+16mm


Contact Ratings
Contact Form:1A, 1B, 1C
Contact Material:AgSnO2
Contact Load Capacity:1A: 40A/14VDC
1B: 30A/14VDC
1C: 40A/14VDC; 30A/14VDC
Max. Switching Current:40A
Max. Switching Power:
Mechanical Endurance:1*107OPS
Electrical Endurance:1*105OPS


Technical Ratings
Insulation Resistance:100MΩ
Dielectric Strength(Between coil&contact):500VAC
Operate Time (Max.):7ms
Release Time (Max.):5ms
Ambient Temperature:-40℃ ~125℃
Terminal Type:THT & Plug-In


Coil Ratings
Nominal Voltage(6-24)VDC
Nominal Coil Power1.6W,1.8W




  Plug in&PCB Layout (Bottom View)                                  Wiring Diagram (Bottom View)

BM94 40A layout                       BM94 40A wiring diagram
